Chemical Earthing Poles

Name: Chemical Earthing Poles
Brand: ALLIED POWER SOLUTIONS
Price: 7500 INR
Availability: InStock

7500 INR

Get a Price/Quote

Product Details:

Efficiency 98%
IP Rating IP67
Overheating Protection YES
Shape Round
Feature Corrosion Resistant, Long Service Life
Humidity % 95% Max
Operating Temperature -10C to 60C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Chemical Earthing Poles Price And Quantity

Price 7500 INR
Minimum Order Quantity 1 Unit

Chemical Earthing Poles Product Specifications

Operating Temperature -10C to 60C
Humidity % 95% Max
Application Electrical Earthing
Surface Finish Hot Dip Galvanized
Frequency (MHz) 50 Hz
Feature Corrosion Resistant, Long Service Life
Color Silver
Mounting Type Vertical
Connector Type Strip/Cable Clamp
Rated Voltage 440 V
Weight 14 kg
Phase Single Phase
Overheating Protection YES
Connection Type Clamp
No Of Poles 1
IP Rating IP67
Product Type Chemical Earthing Pole
Output Type Grounding
Protection Level High
Efficiency 98%
Shape Round
Size 42 mm diameter, 2500 mm length
Dimension (L*W*H) 2500 mm x 42 mm x 3 mm
Energy Consumption Low
Material Galvanized Iron (GI)

Product Description

Our company supplies chemical earthing poles to clients for installation in corporate houses, office buildings, and allied facilities. We also fulfill private social orders. The innovative earthing poles use quality crude material. Their quality is guaranteed by our quality specialists.

Features:

High strength
Dimensionally accurate
Longer service life

Product Details:

Equipment Type: Earthing Plate Clamp, Earthing Pit Cover, Earthing Electrode Pipe

Specification

Length of Rod	As per Requirement
Material	Copper
Condition	New
Equipment Type	Earthing Electrode Pipe

Frequently Asked Questions

1. What substance is employed in chemical earthing?

Ans - Bentonite Powder and Marconite Powder are two different forms of powder that are used in chemical earthing to keep the soil's resistivity high. Bentonite powder is utilized for earthing in typical settings, while marconite powder is employed in arid settings with significant soil resistance.

2. Does chemical earthing call for liquids?

Ans - To achieve the correct resistance value, chemical earthing requires routine water top-up. Water usage for a chemical earthing earthing hole might reach 50 litres annually. A reliable and affordable earthing system is marmonite. Throughout its lifespan, it does not require any water top-up.

3. What colour does chemical earthing have?

Ans - Chemical earthing uses two different kinds of particles. Bentonite powder is the other; the first is carbon powder. Bentonite powder is brown in hue, whereas carbon powder is black.

4. Which substance works the best for earthing?

Ans - Copper is the best material for earth electrodes and subterranean conductors; solid copper is advised for installations involving significant fault currents, although copper bonded rods are typically used for smaller portions.

Superior Grounding Performance

Engineered for high current-carrying needs, this Chemical Earthing Pole efficiently dissipates fault currents up to 30 KA. The blend of Bentonite, carbon, and salt as electrolyte filling offers enhanced conductive properties, ensuring exceptionally low resistivity even under extreme soil conditions. Its innovative internal structure with micro holes guarantees uniform current flow, contributing to improved safety and system stability.

Rugged Construction and Longevity

Built with galvanized iron and finished with hot dip galvanization, this earthing pole resists corrosion, making it suitable for varied environments. With an operational life exceeding 15 years and an IP67 protection rating, it is designed for durability and reliable operation with negligible maintenance, ensuring consistent earthing performance throughout its lifespan.

Versatile and Easy Installation

Measuring 2500 mm in length with a 42 mm diameter, the earthing poles round, single-phase design supports quick vertical mounting using either strip or cable clamps. Its adaptability to all soil types and polythene-wrapped packaging streamline the logistics and installation process, making it a preferred choice for exporters, importers, and on-site service providers alike.

FAQs of Chemical Earthing Poles:

Q: How does the chemical earthing pole achieve efficient grounding in varied soil conditions?

A: The pole uses a proprietary Bentonite, carbon, and salt mix filling, allowing it to maintain low soil resistivity (less than 1 Ohm). Its micro holes ensure uniform electrolyte release and current dissipation, delivering effective grounding performance in all soil conditions.

Q: What is the installation process for this earthing pole?

A: To install, position the pole vertically into the ground at the desired location, making a borehole if necessary. Connect grounding strips or cables with the clamp provided. Thanks to its ready-to-use design and polythene-wrapped packaging, installation is straightforward and clean.

Q: When is it necessary to replace or maintain the chemical earthing pole?

A: With an expected lifespan of over 15 years and negligible maintenance requirements, replacement is rarely needed unless the pole is physically damaged or becomes disconnected. Routine inspections, however, are recommended for any critical grounding system.

Q: Where can this earthing pole be used?

A: It is suitable for a wide range of electrical earthing applications, including industrial, commercial, and residential settings. Its high protection level (IP67) and corrosion resistance make it ideal for both indoor and outdoor installations across India.

Q: What are the benefits of using a bentonite, carbon, and salt mix filling?

A: This unique mixture provides superior conductivity and retains moisture around the pole, ensuring consistent earthing performance over the years. It outperforms conventional systems, especially in soils with poor conductivity.

Q: How does its design contribute to safety and longevity?

A: The hot dip galvanized GI construction is corrosion resistant, and the micro hole design enhances current dissipation. Combined with its robust build and IP67 rating, these features ensure reliable long-term operation, safety, and minimum environmental impact.

Q: What connection options are available, and what type of system does it support?

A: The pole supports both strip and cable clamp connections, and is suitable for single-phase grounding setups with a rated voltage of up to 440 V and 50 Hz frequency, offering flexible integration into most electrical systems.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Chemical Earthing System' category

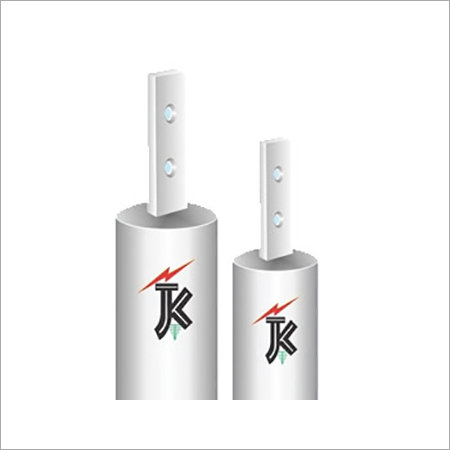

Chemical Gel Earthing System Price : 5200 INR Minimum Order Quantity : 1 Material : Electrolytic Copper & TermiteResistant Sealed Container Energy Consumption : Nil Dimension (L*W*H) : Length: 13 meters (standard configurations) Shape : Rod Size : 40 mm diameter (common); Custom sizes available Output Type : Stable Earth Resistance Protection Level : Other, High Efficiency : High IP Rating : IP67 Product Type : Chemical Gel Earthing Electrode Connection Type : Bolt/Clamp No Of Poles : Single Phase : Single/Three Phase Overheating Protection : YES Weight : 7 kg Rated Voltage : Upto 440 V Connector Type : Copper Termination Clamps Input Voltage : Upto 440 V Mounting Type : Direct Earth Installation Insulation Material : Nonconductive Gel Based Refill Compound Feature : Maintenancefree, moisture retention, anticorrosive, high conductivity Color : Copper/Brown Frequency (MHz) : 5060 Hz Surface Finish : Polished/Chemical Coated Operating Temperature : 10C to 65C Application : Electrical Earthing for Residential, Commercial & Industrial Infrastructure Humidity % : Upto 100%
