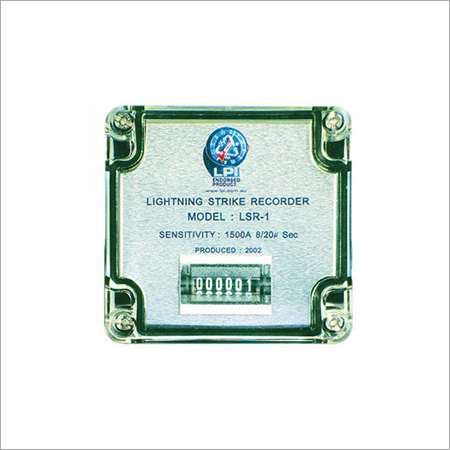

LPI Lightning Strike Recorder

LPI Lightning Strike Recorder
LPI Lightning Strike Recorder
Send Inquiry
Product Code : 00
Product Description

Owing to the tremendous support from our expert professionals, we are able to offer durable Lightning Protection Equipment. Premium quality components have been obtained from the trustworthy sources of the market for making these products. Owing to their high strength and sturdy construction, these products have the capability to sustain adverse effects of weather. These products are installed in different buildings for registering the count of lightening strikes received by lightening terminal. Portable Lightning Protection Equipment is packed in special packaging material so as to determine its safe and secure transportation.

Other Details:

LPI Lightning Strike Recorder (LSR1) is a lightning event counter. LPI Lightning Strike Recorder is simply mounted at any location along the down conductor route. Its purpose is to record the number of strikes captured by the lightning terminal and conveyed by the down conductor. The LSR1 operates by sensing current by means of an inductive pick up loop. The loop passes along the inside surface of the bottom of the enclosure. With the voltage impulse detected by the current transformer (CT) a trigger to the pulse counter then turns the counter over to register the event. The Recorder is mounted in a polycarbonate enclosure rated IP 67.



  • 6 Digits
  • Up to 999999 counts
  • Testable using LSR-Tester

Technical Data:


Ordering Code LSR1
Description: Lightning Strike Recorder
Current sensitivity: 1500A 8/20 1/4s impulse
Operating range: Min. 1500A and Max. 220kA 8/201/4s
Display Mechanical 6 digits display (not re-settable).
Dimension: 80mm (B) x 82mm (H) x 65mm (D)
Weight: 0.4 kg
Mounting: Adjustable stainless steel cable ties to accommodate a cable up to 40 mm dia. Cable or 50mm x 5mm flat tape
Construction: Polycarbonate enclosure
Colour: Light Grey
Environment: IP 67 (IEC 529)
Operating Temperature: -15oC to 65oC
